Features
Specification
FAQ
Evaluation
Download
C-Warmer Dual is an upgraded design of our C-Warmer series. With two heat sinks that can be set at different temperatures, the C-Warmer Dual reduces procedure times and improves overall efficiency. The C-Warmers are designed to enhance both the doctors' and patients' comforts. A thermostatically-controlled cartridge/composite warmer significantly reduces curing time with more flowability of composites and conveniently warms anesthetics and composites in one location. It also improves patient's comfort by delivering the restorations at body temperature with "less injection pain." Its user-friendly operation, compact size, and function will provide a significant impact on the everyday clinical routine.
Instructions
1. Press the power button for 1 sec. to turn on the warmer.
2. To change temperature settings of the left heatsink, hold the ▲ button for 3 seconds until the temperature display blinks.
2. To change temperature settings of the left heatsink, hold the ▲ button for 3 seconds until the temperature display blinks.
Hold the ▼ button for 3 seconds to adjust the right.
3. Adjust the temperature by 1°C by pressing ‘▲’/‘▼’.
4. After 5 seconds, the setting will be automatically saved.
5. Then, wait for approx. 15 mins after setting the warmer at desired temperature.
4. After 5 seconds, the setting will be automatically saved.
5. Then, wait for approx. 15 mins after setting the warmer at desired temperature.
Features
Recommended Temperature Setting
- Anesthetic : 37°C (body temperature)
- Composite : 40°C~45°C
- Has the ability to set two different temperatures for more efficient work
- Precise temperature control with 1°C increments
- Supports universal voltage from 100V to 240V
- Heats to 40°C in about 10~15 mins (Varies depending on environment)
- You can choose any 2 out of 5 options for slot configurations
Advantages
- Upgraded model of our C-Warmer Series
- Freely adjustable temperature with LED digital display between 30°C~70°C
- All buttons located on top of the warmer
- Reduces microleakage
- Improves the flow capacities of composite
- Heaters are installed in the whole body of the warmer allowing heat to circulate and warm the composites thoroughly
- It is safe to touch the warmer when heated because heat is not fully released outside the body
- Maintains constant temperature for all day use with efficient power consumption
C-Warmer
Pink
C-Warmer Blue
Type 1
C-Warmer Blue
Type 2
C-Warmer Blue
with Holders
Item #
AW-1800
AW-1901
AW-1902
AW-1900
Slot Image
Slot Information
- 1 Large Slot (1.2cm)
- 1 Medium Slot (0.9cm)
- 5 Small Slots (0.8cm)
- 1 Large Slot (1.2cm)
- 8 Small Slots (0.8cm)
- 3 Large Slots (1.2cm)
- 4 Small Slots (0.8cm)
- 2 Extra Large Slots (1.6cm)
- 5 Small Slots (0.8cm)
- For composites with larger caps
C-Warmer Dual Slot Configuration Options
Type A - Anesthetics
- 2 Large Slots (15mm diameter) - can hold anesthetic syringe or compule dispenser gun
- 8 Small Slots (9mm diameter) - can hold anesthetic cartridges
Type B - Compules
- 1 Large Slot (15mm diameter) -can hold anesthetic syringe or compule dispenser gun
- 4 Long Slots (7mm diameter) - can hold multiple compules
Type C - Composites
- 1 Large Slot (14.5mm diameter) can hold anesthetic syringe or compule dispenser gun
- 6 Medium Slots (12mm diameter) can hold composite resins
Type D - Larger Composites
- 4 Extra Large Slots (18.6mm diameter) - can hold larger composites (compatible with 3M Composites)
Type E - Larger Composites and Flowable Resins
- 3 Large Slots (15mm diameter) - can hold larger composites (compatible with 3M Composites)
- 4 Medium Slots (10mm diameter) - can hold flowable composite resins
Related Products
C-Warmer Dual Specification
Dimensions
6.13 x 3.38 x 2.50 in
Slot Diameter
Extra Large Slot: 1.8cm
Large Slot: 1.5cm
Medium Slot: 1.2cm
Small Slot: 0.9cm
Long Slot: 0.7cm
Voltage
110V~240V
Adapter
6V DC / 2.5A
Components
1 x Warmer Body
1 x USB C Adapter / Power Cord
1 x Manual

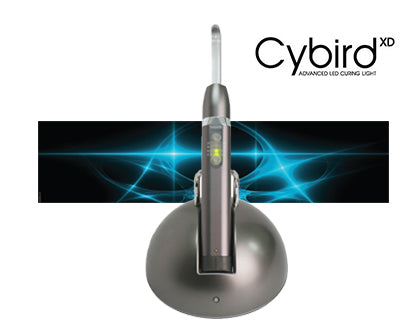

Cybird XD Specification
Wavelength
430 ~ 490nm
Irradiance Intensity
High Power Mode = 1,500 mW/cm² (5, 10, 15, 20 sec.)
Plasma Emulation Mode = 2,500 mW/cm² (1.5, 2, 2.5, 3 sec.)
Dimensions
Handpiece = 150 x 30 x 22.6 (mm)
Charger Base = 120 x 120 x 85 (mm)
Charging Time
2 hours
Operation Time
10 sec x 300 (when fully charged)
FAQS
C-Warmer digital display shows "OHE"
C-Warmer LED display is flickering
LED display may flicker due to inconsistent electricity flow via adapters. Check your adapter connection on the back of the unit and the power outlets on the wall.
Cybird XD Charger has a burning smell
When different adapter is used, since the voltages are different, it will burn your unit. It is very crucial that you use our adapters for our products only.
Please contact us immediately
Cybird XD Battery Pins / Charger Pins are corroded and will not charge
Pins corrode due to too much sterilization. Any liquid left from sterilization will cause corrosion.
Make sure to dry the unit after sterilization.
